Ecoustic Panel Axis

Reminiscent of architectural diagrams, Ecoustic® Axis is an acoustic panel featuring confident large-scale design with straight lines that echo man-made forms and tension through structure.

Key Features

Designer
Michael Young
Environment
California 01350 Emissions Compliant, Declare Compliant, EPD, Greentag Level A Certified, HPD, Low VOC, No Conflict Minerals, No Fire Retardant Additives, Prop 65 Compliant, Published with mindful MATERIALS, Rapidly Renewable Content, Recycled Content, Red List Compliant
NRC Rating
0.30 - 1.0

Additional Features

Designer
Michael Young
Content
100% PET (up to 65% recycled content)
Environment
California 01350 Emissions Compliant, Declare Compliant, EPD, Greentag Level A Certified, HPD, Low VOC, No Conflict Minerals, No Fire Retardant Additives, Prop 65 Compliant, Published with mindful MATERIALS, Rapidly Renewable Content, Recycled Content, Red List Compliant
Performance
  • The NRC rating range for Ecoustic® Panels is between 0.30 and 1.0 depending on the panel thickness, when the panel is directly fixed to a wall.
  • Increased NRC ratings may be achieved by installing Ecoustic® Panels with an air gap.
  • Compared to traditional panels, the semi rigid Ecoustic® Panel + Screen is lower in weight, easier to handle and results in reduced transportation costs.
Green Star + LEED
  • Green Star: Ecoustic® is Greentag Level A Certified and can achieve maximum Green Star points.
  • LEED: 65% post consumer content contributes to LEED MR Credit 4 Recycled Content.
Additional Information
  • The pattern on Axis is railroaded when used as ecoustic® Screen
  • Printed Panels are available in several thicknesses, 0.31″, 0.53″, 0.98″, 1.97″.
  • Minimums are required for the 0.53″ (3 boxes), 0.98″ (3 boxes), and 1.97″ (5 boxes).
  • Detailed NRC ratings may be found on the panel specification document on this page.
  • Natural anodized aluminum edging lengths at 9′ with counter sunk holes are available for all Ecoustic® Panel thicknesses.
  • Ecoustic® is an intelligent alternative to traditional panels composed of multiple materials such as particle board, fabric, foam and adhesive.
  • Ecoustic® Panels + Screens can be trimmed and installed without the need for additional finishes, which reduces labor and material costs.
NRC Rating
0.30 - 1.0
Dimensions
Panel: 47.64” x 107.1”, Print: 47.24” x 106.3” | Screen Panel: 95.3” x 47.64”, Screen Print: 94.5” x 47.24”
Sold In
Box sets per thickness: 0.31" (8), 0.53" (5), 0.98" (6), 1.97" (3)
Flammability
AS/ISO 9705 group 1, AS/NZS 1530.3, ASTM E84 Class A, GB 8624

Available Colors

blue textured felt with a light pink geometric linear pattern
Blush on Indigo
dark grey textured felt with an off white geometric linear pattern
Ghost on Charcoal
Navy on Light Grey Ecoustic Axis
Navy on Light Grey
off white textured felt with a grey geometric linear pattern
Putty on Natural

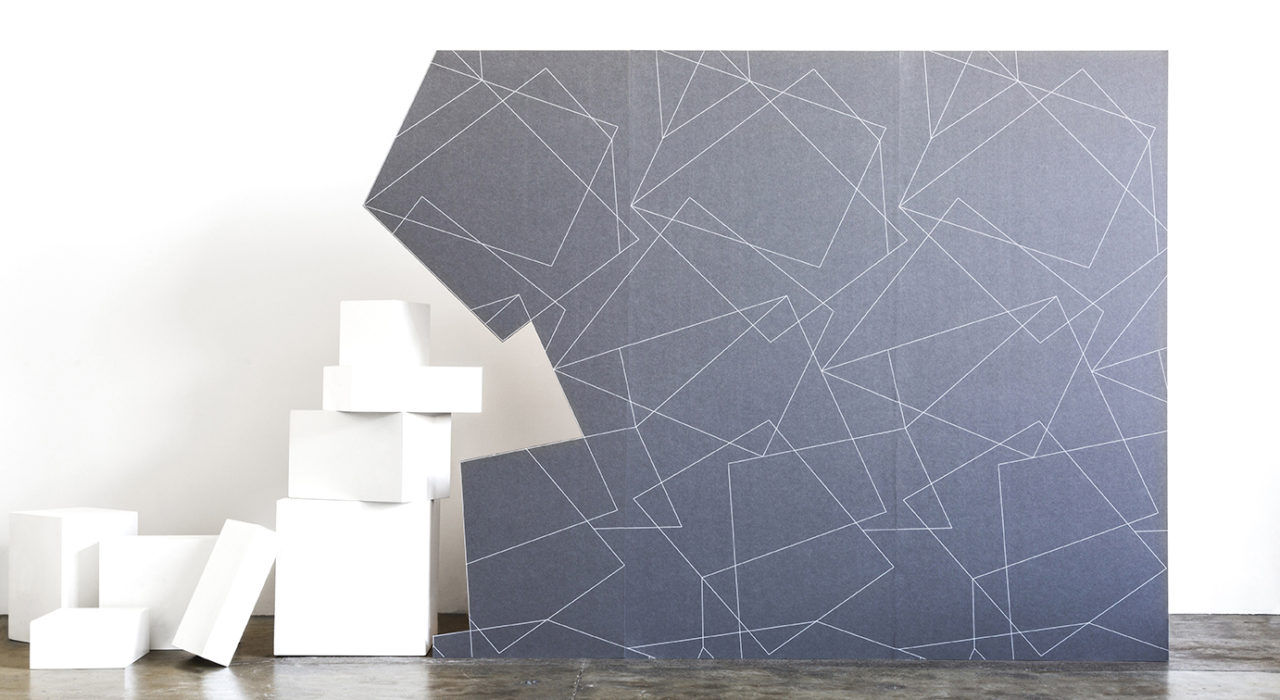

Ecoustic Panel Axis - Grey & White
White on Pewter

Full Panel Artwork

full pattern shown of axis blush on indigo acoustic panel
Blush on Indigo
full pattern shown of axis ghost on charcoal acoustic panel
Ghost on Charcoal
full pattern shown of axis navy on grey acoustic panel
Navy on Grey
full pattern shown of axis putty on natural acoustic panel
Putty on Natural
full pattern shown of axis white on pewter acoustic panel
White on Pewter

Edging Trim Option

Ecoustic Panel Aluminum Trim
0.35"
