Ecoustic Incline Baffles

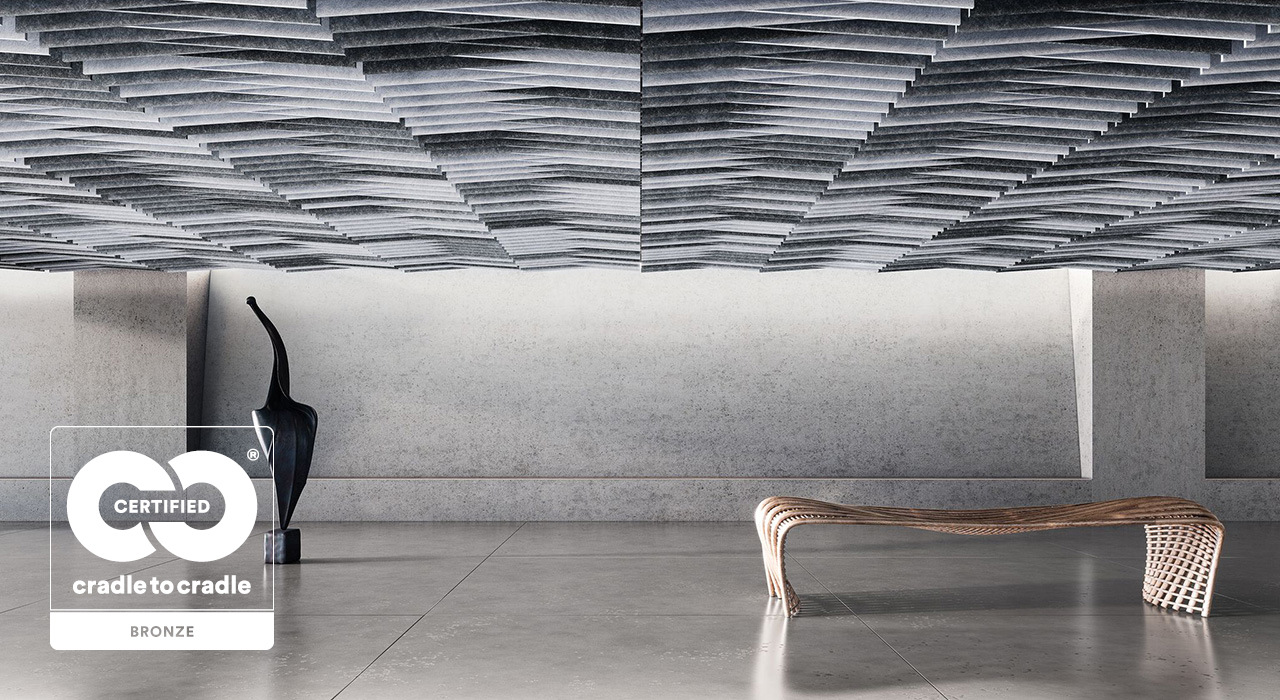

Ecoustic® Incline Baffles are a modular acoustic panel and support system designed for vertical, horizontal, and angular suspension. Available in a variety of colors, dimensions, and design options, acoustic baffles provide design flexibility in acoustic performance and aesthetics.
Key Features
Designer
Instyle Design Studio
Environment
California 01350 Emissions Compliant, Cradle to Cradle Bronze Certified®, Declare Compliant, EPD, HPD, ISO 14001-certified EMS, Low VOC, No Conflict Minerals, No Fire Retardant Additives, Oeko-Tex® Certified, Prop 65 Compliant, Published with Ecomedes, Published with mindful MATERIALS, Rapidly Renewable Content, Recycled Content, Red List Compliant
NRC Rating
0.75 - 0.95 depending on thickness
Additional Features
Designer
Instyle Design Studio
Content
100% PET (60% Recycled PET)
Environment
California 01350 Emissions Compliant, Cradle to Cradle Bronze Certified®, Declare Compliant, EPD, HPD, ISO 14001-certified EMS, Low VOC, No Conflict Minerals, No Fire Retardant Additives, Oeko-Tex® Certified, Prop 65 Compliant, Published with Ecomedes, Published with mindful MATERIALS, Rapidly Renewable Content, Recycled Content, Red List Compliant
Performance
- Ecoustic® Baffles are constructed from recyclable, 100% PET.
- Baffle panels have achieved low VOC certification.
Green Star + LEED
- Ecoustic® Baffles can achieve Green Star low-VOC points.
Additional Information
- Ecoustic® Baffles can be installed in various orientations via aluminum rail and suspension cables. Additional mounting options available upon request.
- Custom Sizes: Ecoustic® Baffles can be fabricated to client specifications, in lengths from 23.625″ to 106.3″ and depths from 3.9″ to 47.25″. A small range of standard shapes are also available.
- Custom thicknesses (0.35″, 0.53″, 0.98″) available upon request.
- Standard mounting for vertical cable suspension included in every kit.
- NRC ratings are contingent upon depth of and spacing between baffles.
- ASTM E84 fire rating for 0.47″ Cores is Class A
- ASTM E84 fire rating for 0.94″ Cores is Class C – Class A is available upon request with minimum order quantities
Published with Ecomedes
NRC Rating
0.75 - 0.95 depending on thickness
Dimensions
106” (L) x 3.9”-11.8” (H) x 0.47" or 0.94" (D) per baffle fin
Sold In
box sets of 6 per color with instructions + hardware
Flammability
AS/ISO 9705 group 1, AS/NZS 1530.3, ASTM E84 Class A, CAN ULC S102
Loading Image...
Download High Resolution ImageAvailable Colors
Solid Core .47" - Almond
Solid Core .47" - Atom
Solid Core .47" - Azure
Solid Core .47" - Buff
Solid Core .47" - Cave
Solid Core .47" - Cirrus
Solid Core .47" - Cool
Solid Core .47" - Denim
Solid Core .47" - Dusk
Solid Core .47" - Ecru
Solid Core .47" - Fawn
Solid Core .47" - Galaxy
Solid Core .47" - Horizon
Solid Core .47" - Isle
Solid Core .47" - Jay
Solid Core .47" - Kiln
Solid Core .47" - Night
Solid Core .47" - Olive
Solid Core .47" - Oxide
Solid Core .47" - Sand
Solid Core .47" - Snowdrop
Solid Core .47" - Truffle
Solid Core .47" - Tungsten
Solid Core .47" - Wild
Solid Core .94" - Ash
Solid Core .94" - Graphite
Solid Core .94" - Nero
Solid Core .94" - Pure
Solid Core .94" - Stone
Solid Core .94" - Vanilla
