Ecoustic® Ceiling Flats

Ecoustic® Ceiling Flats are highly functional decorative acoustic ceiling tiles available in a wide range of colors and sound-absorbing thicknesses, .47″, .53″, .94″, & .98″, designed to fit into new and existing grid systems. Available in two thicknesses of solid color core, or three thicknesses of felt-faced options.

Key Features

Designer
Instyle Studio
Environment
California 01350 Emissions Compliant, No Fire Retardant Additives, Cradle to Cradle Bronze certified, Low VOC, Oeko-Tex® Certified, Recycled Content, Prop 65 Compliant, mindful MATERIALS, Greentag Level A Certified, HPD, Declare Compliant
NRC Rating
0.85 - 0.95 depending on thickness
Specifications & Downloads
Contact Us

Additional Features

Designer
Instyle Studio
Content
100% PET, 100% PET (up to 80% recycled content)
Environment
California 01350 Emissions Compliant, No Fire Retardant Additives, Cradle to Cradle Bronze certified, Low VOC, Oeko-Tex® Certified, Recycled Content, Prop 65 Compliant, mindful MATERIALS, Greentag Level A Certified, HPD, Declare Compliant
Performance
  • NRC Ratings below per thickness:
    .47” Tile- NRC 0.85 (8” air gap)
    .53” Tile- NRC 0.85 (16” air gap)
    .94” Tile- NRC 0.95 (8” air gap)
    .98” Tile- NRC 0.90 (16” air gap)
  • Quality sound absorption
  • Lightweight and easy to handle/install
Green Star + LEED
  • Ecoustic® Ceiling Flats .53″ + .98″ are Greentag Level A Certified and can achieve maximum Green Star points
  • Ecoustic® Ceiling Flats .53″ + .98″: 80% post-consumer content contributes to LEED MR Credit 4 Recycled Content
  • Please note that depending on the thickness selected, the content will vary slightly. .47″ thick Flats are 100% PET while the .53″ and .98″ Flats are 100% PET with greater than 80% recycled material.
Additional Information
  • Ecoustic® Ceiling Flats are produced with 100% PET or 100% PET (up to 80% recycled content) depending on the thickness requested. See specification pages for further details.
  • Ecoustic® Ceiling Flats are available in 4 thicknesses: .47”, .53”, .94”, & .98”
  • Ecoustic® Ceiling Flats are available in an array of color options depending on thickness selected.
  • Simple and efficient installation process of assembled Flats.
  • Flats can be installed easily into existing or new fit-outs.
  • Installed Flats can be easily removed (for example to gain access to services).
  • Ecoustic® Ceiling Flats are designed to be compatible with 15mm and 24mm Exposed Tee grid systems. Ensure the tile is suitable for your selected system prior to ordering.
  • Ceiling Flats are not suitable for back loading. Loads must be supported independently by the grid or through the use of additional fixtures.
  • Please note that the .94″ Ceiling Flat profile achieves ASTM E84 Class C fire rating as opposed to Class A
  • Cradle to Cradle certification applies only to the 0.47″ and 0.94″ Flats produced with Solid CorePLEASE NOTE: It is the responsibility of site installation managers to confirm compatibility between the ceiling grid system specified and the dimensions of Ecoustic® ceiling tiles prior to placement of purchase order. Custom sized Ecoustic® ceiling tiles can be produced, however, conditions do apply. Please contact Unika Vaev customer service or your local sales representative for more information.
NRC Rating
0.85 - 0.95 depending on thickness
Dimensions
4' x 2' or 2' x 2' (nominal) to fit T-Frame suspended ceiling systems
Sold In
Quantities vary depending on style / size / thickness chosen
Flammability
AS/ISO 9705 group 1, CAN ULC S102, ASTM E84 Class A
Specifications
Wilsonart® Pattern Specifications
Installation + Care
Drawing Files

Available Colors

Solid Core .47" - Almond
Solid Core .47" - Atom
Solid Core .47" - Azure
Solid Core .47" - Bluebell
Solid Core .47" - Cave
Solid Core .47" - Cirrus
Solid Core .47" - Cool
Solid Core .47" - Denim
Solid Core .47" - Ecru
Solid Core .47" - Fawn
Solid Core .47" - Galaxy
Solid Core .47" - Horizon
Solid Core .47" - Iris
Solid Core .47" - Isle
Solid Core .47" - Leaf
Solid Core .47" - Olive
Solid Core .47" - Oxide
Solid Core .47" - Snowdrop
Solid Core .47" - Truffle
Solid Core .47" - Tungsten
Solid Core .47" - Venus
Solid Core .94" - Ash
Solid Core .94" - Graphite
Solid Core .94" - Nero
Solid Core .94" - Pure
Solid Core .94" - Stone
Felt Face .53" - Aqua (black core)
Felt Face .53" - Arctic (black core)
Felt Face .53" - Aubergine (black core)
Felt Face .53" - Baltic (black core)
Felt Face .53" - Berry (black core)
Felt Face .53" - Cameo (white core)
Felt Face .53" - Caper (black core)
Felt Face .53" - Charcoal (black core)
Felt Face .53" - Cobalt (black core)
Felt Face .53" - Cream (white core)
Felt Face .53" - Dove (white core)
Felt Face .53" - Field (black core)
Felt Face .53" - Fossil (black core)
Felt Face .53" - Fresco (white core)
Felt Face .53" - Green (black core)
Felt Face .53" - Hunter (black core)
Felt Face .53" - Indigo (black core)
Felt Face .53" - Jet (black core)
Felt Face .53" - Lemon (black core)
Felt Face .53" - Light Grey (black core)
Felt Face .53" - Lime (black core)
Felt Face .53" - Lunar (white core)
Felt Face .53" - Mica (white core)
Felt Face .53" - Natural (white core)
Felt Face .53" - Nautical (black core)
Felt Face .53" - Oatmeal (white core)
Felt Face .53" - Opal (white core)
Felt Face .53" - Orange (black core)
Felt Face .53" - Oyster (white core)
Felt Face .53" - Paprika (black core)
Felt Face .53" - Pewter (black core)
Felt Face .53" - Quartz (black core)
Felt Face .53" - Red (black core)
Felt Face .53" - Sepia (black core)
Felt Face .53" - Sky (white core)
Felt Face .53" - Spray (white core)
Felt Face .53" - Taupe (black core)
Felt Face .53" - Vault (black core)
Felt Face .53" - White (white core)
Felt Face .53" - Yellow (black core)
Felt Face .98" - Aqua (white core)
Felt Face .98" - Arctic (white core)
Felt Face .98" - Aubergine (white core)
Felt Face .98" - Baltic (white core)
Felt Face .98" - Berry (white core)
Felt Face .98" - Cameo (white core)
Felt Face .98" - Caper (white core)

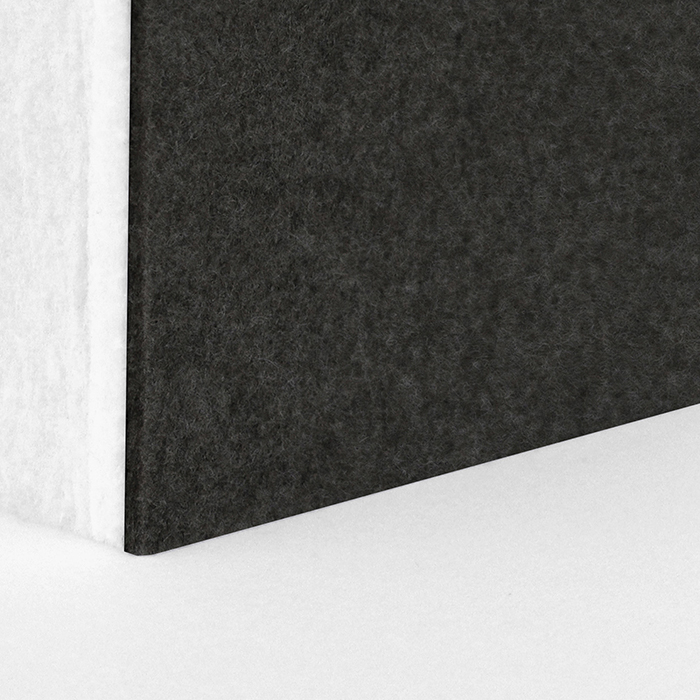

Felt Face .98" - Charcoal (white core)
Felt Face .98" - Cobalt (white core)
Felt Face .98" - Cream (white core)
Felt Face .98" - Dove (white core)
Felt Face .98" - Field (white core)
Felt Face .98" - Fossil (white core)
Felt Face .98" - Fresco (white core)
Felt Face .98" - Green (white core)
Felt Face .98" - Hunter (white core)
Felt Face .98" - Indigo (white core)
Felt Face .98" - Jet (white core)
Felt Face .98" - Lemon (white core)
Felt Face .98" - Light Grey (white core)
Felt Face .98" - Lime (white core)
Felt Face .98" - Lunar (white core)
Felt Face .98" - Mica (white core)
Felt Face .98" - Natural (white core)
Felt Face .98" - Nautical (white core)
Felt Face .98" - Oatmeal (white core)
Felt Face .98" - Opal (white core)
Felt Face .98" - Orange (white core)
Felt Face .98" - Oyster (white core)
Felt Face .98" - Paprika (white core)
Felt Face .98" - Pewter (white core)
Felt Face .98" - Quartz (white core)
Felt Face .98" - Red (white core)
Felt Face .98" - Sepia (white core)
Felt Face .98" - Sky (white core)
Felt Face .98" - Spray (white core)
Felt Face .98" - Taupe (white core)
Felt Face .98" - Vault (white core)
Felt Face .98" - White (white core)
Felt Face .98" - Yellow (white core)
